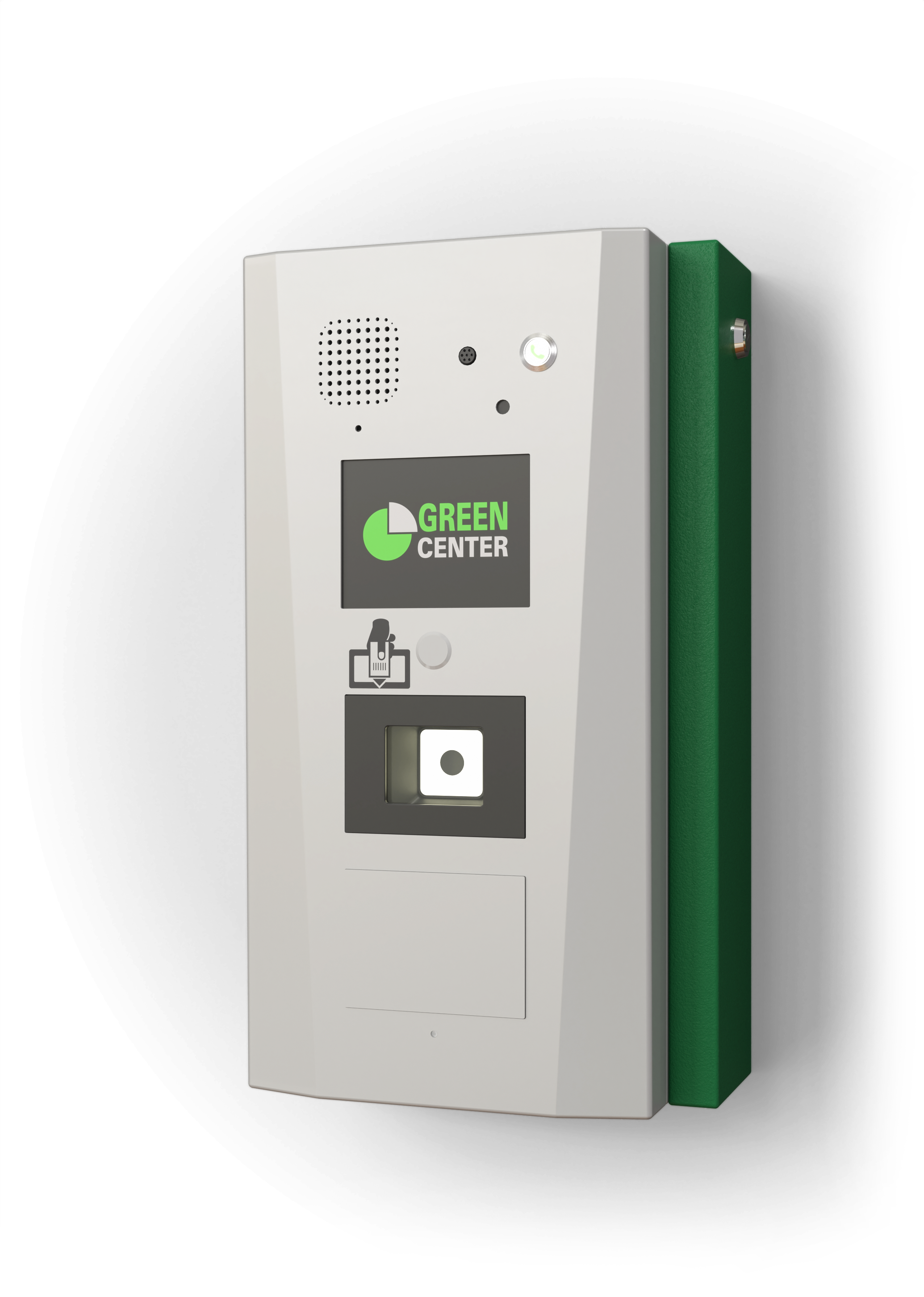

GP4AM – Small Payment Station
GP4AM is a small automatic payment station that can be integrated into a remote monitoring system.
It enables entry after payment with Euro or other coins, payment card, or tokens.
Basic Features
- Unlocking a door lock after payment with Euro coins
(does not support coin return) - LED lock status indicator light
Optional Features
- Entry after card payment
- Entry via RFID technology
- Entry via Euro key
- Payment with non-Euro coins
- Connection to MARS (remote monitoring system)
Basic Components
- Coin acceptor
- Passage direction LED indicator lights
Optional Components
- Payment terminal (contact and contactless)
- RFID card reader
- Euro lock (free entry for people with disabilities)
Technical details
| Material | Stainless steel |
|---|---|
| Dimensions | 335 x 270 x 112 mm |
| Weight | 5 kg |
| Protection Level | IP 54 |
| Maximum Power Consumption | 21 W |
| Operating Temperature Range | -25°C to +50°C |
| Accepted Coins | Up to 16 nominal values |
| Power Supply | 230 V ∿ |
